What it reads.
Thirteen formats, what each one gives up, and what happens to a file it cannot read confidently.
File formats
Thirteen formats in all, counting each supported DWG release separately. OCR runs on every one that needs it.
| Format | Read as | Caveat |
|---|---|---|
| DWG | True vector geometry and layers | R2004 and later. Older releases are named and refused, never read as an empty drawing. |
| DXF | True vector geometry and layers | The most portable exchange format; preferred if DWG export is awkward. |
| IFC | Model geometry and element types | Used for the 3D view and element-linked findings. |
| Vector PDF | Geometry, text and layers where present | Layer filtering needs at least two layers; fewer shows a clean empty state. |
| Scanned PDF | OCR over a rasterised sheet | At low resolution, recognition misreads exactly the characters that matter — 5/8 as 5/B, 90 as 9O. Low-confidence readings are marked “verify” and kept out of the total. |
| PNG / JPG / TIFF | OCR over the image | Same caveat as scanned PDF. Scale has to be set or found on the sheet. |
| XLSX / CSV | Schedules and rate tables | Column mapping is confirmed on import. |

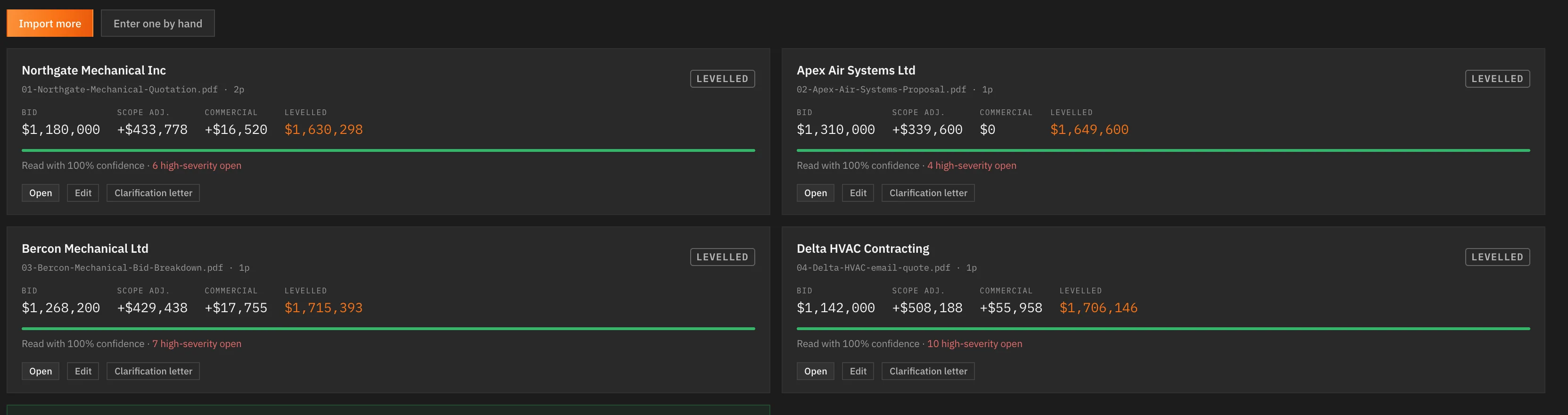

PDF or DWG
Upload the set however it reached you. Most contractors receive PDFs, and a PDF plotted from CAD carries the line work, the text and usually the layers, so it is read and audited the same way a DWG is. Not everyone is sent the DWG, and nothing here depends on having it. The one real difference is a scanned sheet, which is read by OCR: see its row above.
Multi-sheet sets
Sheets that are parts of one plan — same level, same discipline, overlapping rather than coinciding — are joined on their grid bubbles and the overlap is de-duplicated. A sheet the program cannot confidently place is named beside the total with the reason, because a silently dropped sheet is a silently missing count.
